FYS20-20 DC24V Permanent Magnet Inverter Booster Pump Smart Automatic Water Pressure Pump for Home & Building
· Smart Automatic Boosting: Permanent magnet inverter technology enables automatic operation according to water demand for stable household water pressure.
· Powerful & Efficient: 200W motor delivers up to 2.0m³/h max flow and 20m max head with low-current startup and efficient performance.
· Quiet & Compact: Low-noise operation and compact design make it ideal for homes, apartments, bathrooms, kitchens, and residential water systems.
- Overview
- Recommended Products
Bathroom water pressure boosting for showers, basins, and daily washing
Kitchen water supply for faucets and household appliances
2-story villas requiring stable water pressure across multiple floors
3-story villas and residential buildings with higher pressure demands
Household water systems where easy installation and reliable operation are required
Technical Specifications
| Specification | FYS20-20 / DC15-20 |
|---|---|
| Product Type | Permanent Magnet Inverter Booster Pump |
| Input Voltage | DC24V |
| Max. Power | 200W |
| Power | Approx. 0.3HP |
| Nominal Flow | Approx. 1.5m³/h |
| Max. Flow | 2.0m³/h |
| Max. Head | 20m |
| Max. Pressure | 0.6MPa |
| Inlet / Outlet | 0.8" × 0.8" |
| Inlet Type | Bottom Inlet |
| Outlet Type | Top Outlet |
| Protection Grade | IP54 |
| Insulation Class | F |
| Liquid Temperature | 0–90°C |
| Package Size | 230 × 210 × 130mm |
| Gross Weight | Approx. 2.1kg |
| Suitable Liquid | Clean Water & Non-Aggressive Liquids |
Smart Water Pressure. Quiet Operation. Compact Design
The FYS20-20 Permanent Magnet Inverter Booster Pump is designed for household and light commercial water pressure boosting applications.
Powered by a 24V DC permanent magnet inverter motor, the pump combines automatic operation, low-current startup, quiet performance and compact installation in one smart boosting solution.
It is suitable for clean water and non-aggressive liquids and can be widely used in domestic water supply, residential buildings, water circulation systems and pressure boosting applications.
Permanent Magnet Inverter Technology for Stable and Efficient Water Boosting

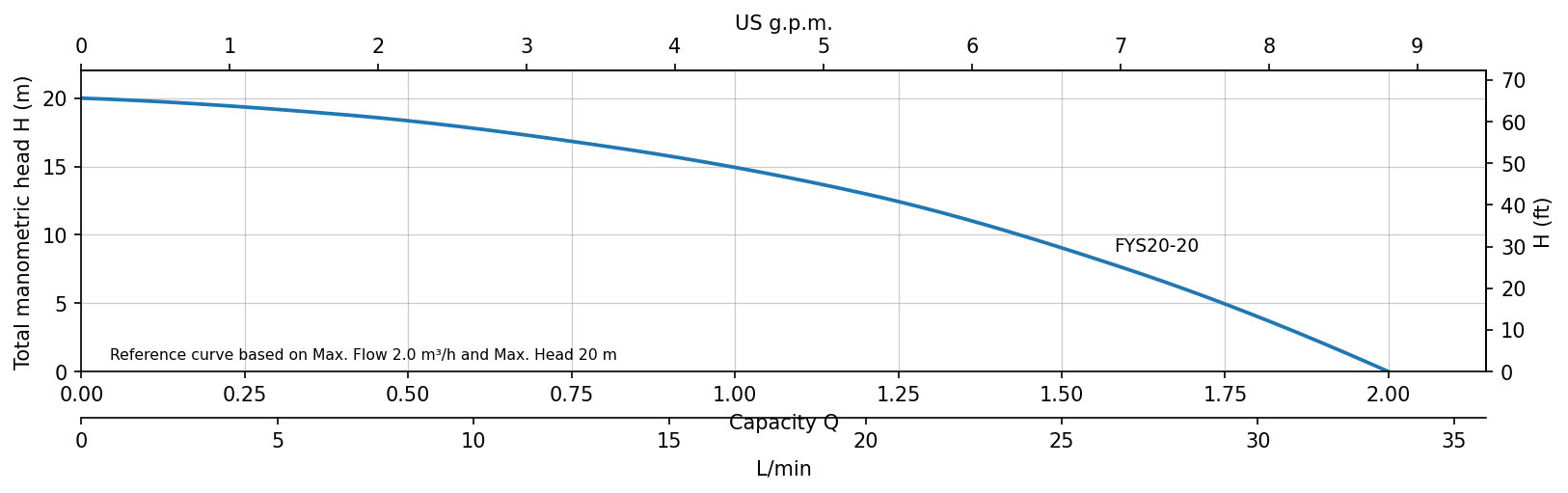

The FYS20-20 is equipped with a permanent magnet inverter motor designed to provide stable and efficient water pressure boosting for residential applications. With a maximum power of 200W, the pump delivers up to 2.0m³/h maximum flow and 20m maximum head.
The inverter control system allows the pump to respond intelligently to household water demand, helping provide more stable water pressure while reducing unnecessary operation. Its low-current startup also helps reduce electrical impact during motor activation.
With a compact integrated design, the FYS20-20 provides a practical alternative to conventional household booster pumps, especially for apartments, villas, bathrooms, kitchens, and residential water supply systems.
Automatic Operation for More Convenient Household Water Supply
The FYS20-20 is designed to simplify everyday water pressure management. After entering automatic mode, the pump can respond to water demand and start operating when the faucet is opened.
This automatic operating design reduces the need for frequent manual control and makes the pump more convenient for everyday residential use.
Combined with quiet operation, compact dimensions, and a maximum head of 20m, the FYS20-20 is suitable for modern household water systems that require a smarter, quieter, and space-saving pressure boosting solution.
Premium Core Components for Stable and Long-Term Performance
Our pumps are built with carefully selected core motor components, including a 100% copper-wire stator, premium-quality bearings, and a precision-machined rotor. These components work together to provide stable conductivity, smooth rotation, better dynamic balance, and reliable motor performance during continuous operation.
Compared with aluminum windings, low-grade bearings, and poorly machined rotors, our upgraded component design helps reduce vibration, minimize mechanical wear, improve operating stability, and extend overall motor service life. By focusing on the quality of every critical internal part, we ensure more consistent performance and greater long-term reliability.
Wide Application for Different Household Water Supply Needs
Thanks to its compact design and stable pressure boosting performance, this permanent magnet inverter booster pump is suitable for a wide range of household water supply applications, including:
Its ability to provide stable water pressure, wide application compatibility, reliable performance, and easy installation makes it an ideal solution for modern homes, villas, and residential water supply systems.
Certified Quality and Global Market Presence
Taizhou Feiyi Pump Co., Ltd. manufactures products in accordance with international quality and compliance standards and has obtained recognized certifications including CE, ISO, SABER, and SONCAP. These certifications help ensure that our products meet the technical, safety, and market access requirements of different countries and regions.
With products supplied to more than 100 countries and regions worldwide, we serve customers across Europe, the Middle East, Africa, Southeast Asia, North and South America, and other global markets. Supported by reliable product quality, complete certification solutions, and professional export services, we are committed to becoming a trusted long-term partner for distributors, importers, OEM brands, and international projects.
Standardized Shipping Process for Safe and On-Time Delivery
Taizhou Feiyi Pump Co., Ltd. follows a complete and standardized shipping process to ensure every order is packed, handled, and delivered safely and efficiently. From finished product preparation and secure packaging to cargo tallying, container loading, port transportation, and final vessel shipment, each step is carefully managed by our team.
Our professional packing helps protect products during transportation, while strict cargo counting and loading inspections reduce the risk of missing or damaged goods. With coordinated logistics support and a reliable shipping network, we are committed to providing safe handling, efficient processing, careful loading, and on-time delivery for customers worldwide.
